Introduction to Measurement Models

SMIP Summer School 2025: Lecture 02

Section Objectives

  1. Latent traits
  2. Our first graphical model (path diagram)
  3. Psychometric models from generalized linear models

Latent Traits: A Big-Picture View

Latent trait theory posits there are attributes of a person (typically) that are:

  • Unobservable (hence the term latent)
  • Quantifiable
  • Related to tasks that can be observed

Often, these attributes are often called constructs, underscoring they are constructed and do not exist, such as:

  • A general or specific ability (in educational contexts)
  • A feature of personality, such as “extroversion” (in psychological contexts)

The same psychometric models apply regardless of the measurement context

Latent Traits are Interdisciplinary

  • Many varying fields use some version of latent traits
  • Similar (or identical) methods are often developed separately
    • Item response theory in education
    • Item factor analysis in psychology
  • Many different terms for same ideas, such as the
    • Label given to the latent trait: Factor/Ability/Attribute/Construct/Variable/True Score/Theta (\(\theta\))
    • Label given to those giving the data: Examinee/Subject/Participant/Respondent/Patient/Student
    • Label given to the data: Outcome/Indicator/Item/Response
  • What this means:
    • Lots of words to keep track of, but (relatively) few concepts

Best Measures are Built Purposefully

  • Latent constructs seldom occur randomly—they are defined
    • The definition typically indicates:
      • What the construct means
      • What observable behaviors are likely related to the construct
        • For a lot of what we do, observable behavior means answering questions on an assessment or survey
  • Therefore, modern psychometric methods are built around specifying the set of observed variables to which a latent variable relates
    • No need for exploratory analyses—we define our construct and seek to falsify our definition
  • The term I use for “relates” is “measure”
    • e.g., Educational assessment items measure some type of ability

Guiding Principles

  • To better understand psychometric methods and theory, envision what analyses would be used if latent variables were not latent
    • Example: Imagine if we could directly observe mathematics ability
  • Then, consider what we would do with that value
    • Example: We could predict how students would perform on items using logistic regression (with \(\theta\) as an observed predictor)
  • Psychometric models essentially do this—use observed variable methods as if we know the value of the latent variable
    • But, with:
      • A data collection design allowing for such methods to be used
      • A more formal vetting of whether or not we did a good job measuring the construct

Measurement of Latent Constructs

How does this process differ when we cannot observe the thing we are measuring—when the construct is latent?

  • We still need something we can observe—item responses for example
  • We need a method to map the response to a number (Strongly agree==5?)
  • We also need a way to aggregate all responses to a value that represents a person
    • A score or classification
  • We then need a way to ensure what we just did means what we think it does
    • Methods for validation
  • We also need to remember that the values we estimate for a person’s latent trait(s) won’t be perfectly reliable
    • Caution needed for secondary analyses

Measurement Models

  • Distinguishing feature of psychometric models is the second word—they are models
    • We often call such models “measurement models”
  • Measurement models are the mathematical specification that provides the link between the latent variable(s) and the observed data
  • The form of such models looks different across the wide classes of measurement models (e.g., factor analysis vs. item response models) but wide generalities exist
    • Continuous Responses? “Confirmatory Factor Analysis”
    • Categorical responses? “Item Response Theory or Item Factor Analysis”
  • Measurement models need:
    • Distributional assumptions about the data (with link functions)
    • A linear or non-linear form that predicts data from the trait(s)
  • The key: Observed data are being predicted by latent variable(s)

Models vs. Other Techniques

Measurement models are a different way of thinking about psychometrics than what most people without psychometric training do

  • Most scientists enumerate item response scores (e.g., correct response == 1; strongly agree == 5)
  • The latent trait score estimate is then formed by summing the response scores
    • “Add ‘Stuff’ Up” model: (Scheiße zusammenzählen?)
  • As it turns out, the naive adding together of item scores implies a measurement model
    • Called parallel items — very strict assumptions
      • Equal variances and covariances for all observed variables
      • Items measure the trait equally well, with the same amount of error, and no additional relations

Characteristics of Latent Variables

Latent variables can be defined to have different levels of measurement

  • Interval level (as in factor analysis and item response theory) — Continuous
    • No absolute zero; units of the factor are equivalent across the range of values
    • Example: A person with a value of 2 is the same distance from a person with a value of 0 as is a person with a value of -2
  • Ordinal level (as in diagnostic classification models)
    • Can rank order people but not determine how far apart they may be
    • Example: Students considered masters of a topic have more ability than students considered non-masters
  • Nominal level (as in latent class or finite mixture models) — Categorical
    • Groups/classes/clusters of people

Most Common: Continuous Latents

  • For most of this workshop, we will treat latent variables as continuous (interval level)
  • As they do not exist, continuous latent variables need a defined metric:
    • What is their mean? (Usually set to zero)
    • What is their standard deviation? (Set to one or borrowed from metric of items)
  • Defining the metric is the first step in a latent variable model
    • Called scale identification
  • The metric is arbitrary
    • Can set differing means/variances but still have same model
    • Linear transformations of parameters based on scale mean and standard deviation

Measurement Model Path Diagrams

Measurement models are often depicted in graphical format, using what is called a path diagram

  • Typically, latent variables are represented as objects that are circles/ovals
  • Using graph theory terms, a variable in a path diagram (latent or observed) is called a node
  • Lines connecting the variables are called edges

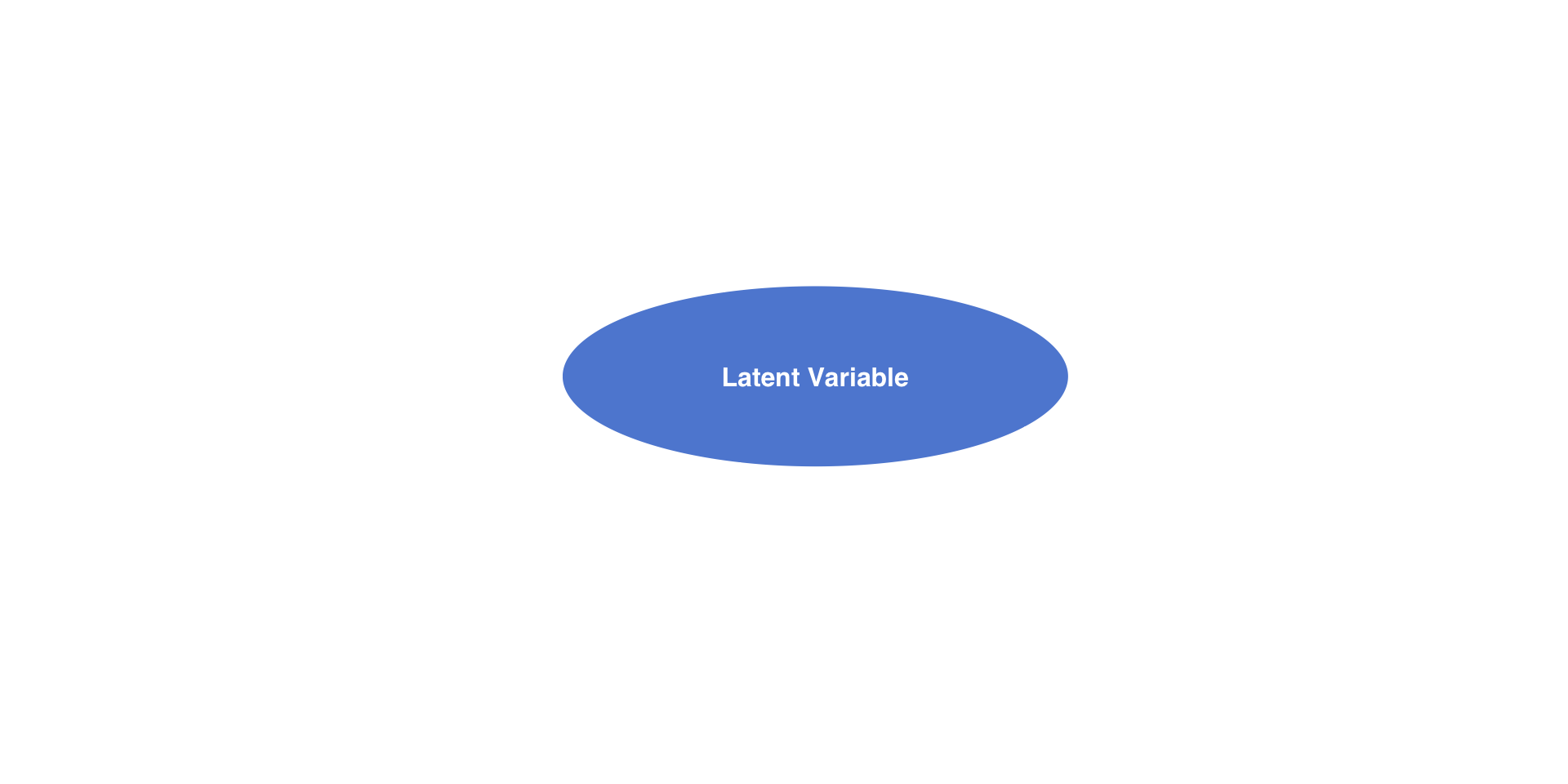

Latent Variable Only

Adding Observed Variables

Measurement model path diagrams often denote observed variables with rectangular boxes

On the next slide:

  • The term “latent variable” is replaced with \(\theta\)
  • The observed variables are denoted as \(Y1\) through \(Y5\)
    • Imagine these represent five observed items of a scale measuring \(\theta\)

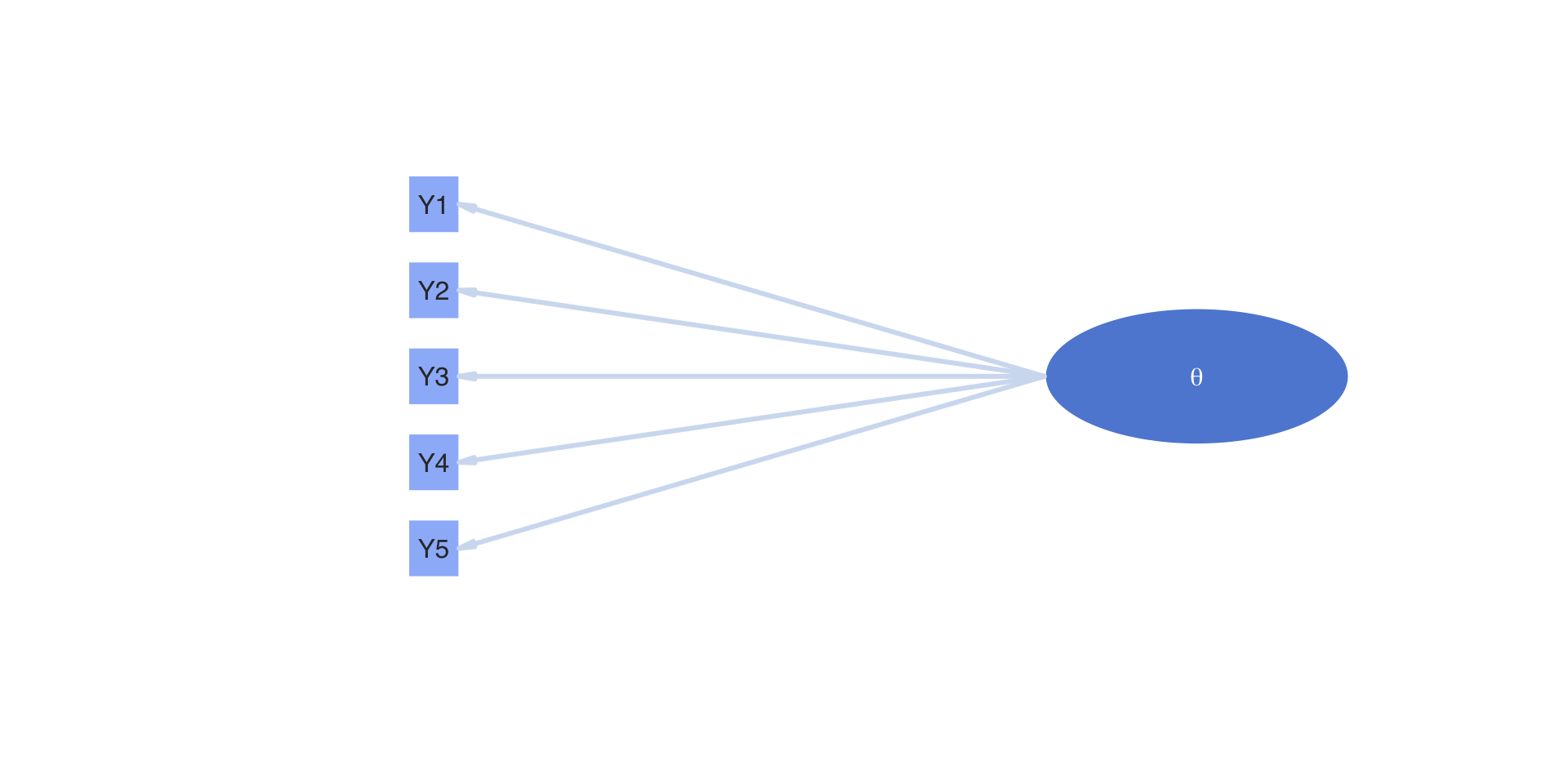

Path Diagram with Observed and Latent Variables

Path Diagrams: Not Models

Path diagrams are useful for depicting a measurement model but are not isomorphic with the mathematical models they depict

  • All model parameters are often not included in the diagram
  • No indication about the distribution of the variables

Translating a Path Diagram to a Model

Going back to the point from before—let’s imagine the latent variable as an observed variable

  • An arrow (edge) indicates one variable predicts another
    • The predictor is the variable on the side of the arrow without the point
    • The outcome is the variable on the side of the point
  • If we assume the items were continuous (like linear regression), the diagram indicates a regression model for each outcome

\[ \begin{array}{c} Y_{p1} = \beta_{Y_1, 0} + \beta_{Y_1,1} \theta_p + e_{p, Y_1} \\ \end{array} \]

Interpreting the Parameters

All five regression lines implied by the model are then:

\[ \begin{array}{c} Y_{p1} = \beta_{Y_1, 0} + \beta_{Y_1,1} \theta_p + e_{p, Y_1} \\ Y_{p1} = \beta_{Y_2, 0} + \beta_{Y_2,1} \theta_p + e_{p, Y_2} \\ Y_{p3} = \beta_{Y_3, 0} + \beta_{Y_3,1} \theta_p + e_{p, Y_3} \\ Y_{p4} = \beta_{Y_4, 0} + \beta_{Y_4,1} \theta_p + e_{p, Y_4} \\ Y_{p5} = \beta_{Y_5, 0} + \beta_{Y_5,1} \theta_p + e_{p, Y_5} \\ \end{array} \]

  • \(\beta_{Y_i, 0}\) is the intercept of the regression line predicting the score from item \(Y_i\)
    • The expected response score for a person who has \(\theta_p=0\)
  • \(\beta_{Y_i, 1}\) is the slope of the regression line predicting the score from item \(Y_i\)
    • The expected change in the response score for a one-unit change in \(\theta_p\)

More Interpreting the Parameters

Also:

  • \(e_{p, Y_i}\) is the residual (error), indicating the difference in the predicted score for person \(p\) to item \(i\)
    • Like in regression, we additionally assume:
      • \(e_{p,Y_i} \sim N\left(0, \sigma^2_{e_{Y_i}} \right)\): is normally distributed with mean zero
  • \(\sigma^2_{e_{Y_i}}\) is the residual variance of item \(Y_i\), indicating the square of how far off the prediction is on average

The five regression models are estimated simultaneously:

  • If \(\theta_p\) were observed, we would call this a multivariate regression
    • Multivariate regression: Multiple continuous outcomes predicted by one or more predictors

More About Regression

\[Y_{pi} = \beta_{Y_i, 0} + \beta_{Y_i,1} \theta_p + e_{p, Y_i} \] In the regression model for a single variable, what distribution do we assume about the outcome?

  • As error is normally distributed, the outcome takes a normal distribution \(Y_{pi} \sim N( ?, ?)\)
  • As \(\beta_{Y_i, 0}\), \(\beta_{Y_i,1}\), and \(\theta_p\) are constants, they move the mean of the outcome to \(\beta_{Y_i, 0} + \beta_{Y_i,1} \theta_p\)
    • \(Y_{pi} \sim N( \beta_{Y_i, 0} + \beta_{Y_i,1} \theta_p, ?)\)
  • As error has a variance of \(\sigma^2_{e_{Y_i}}\), the outcome is assumed to have variance \(\sigma^2_{e_{Y_i}}\)
    • \(Y_{pi} \sim N( \beta_{Y_i, 0} + \beta_{Y_i,1} \theta_p, \sigma^2_{e_{Y_i}})\)
  • Therefore, we say \(Y_{pi}\) follows a conditionally normal distribution

The Univariate Normal Distribution

\(Y \sim N( \mu, \sigma^2)\) that implies a probability density function (pdf)

\[f\left(Y\right) = \frac{1}{\sqrt{2 \pi \sigma^2 }}\exp\left[\frac{\left(Y - \mu \right)^2}{2\sigma^2} \right]\]

  • Here, \(\pi\) is the constant 3.14 and \(\exp\) is Euler’s constant (2.71)
  • Of note here is that there are three components that go into the function:
    • The data \(Y\)
    • The mean \(\mu\) — this can be the conditional mean we had on the previous slide (formed by parameters)
    • The variance \(\sigma^2\)
  • The key to using Bayesian methods is to know the distributions for each of the variables in the model

From Regression to CFA

When \(\theta_i\) is latent, the five-variable model becomes a confirmatory factor analysis (CFA) model

  • CFA: Prediction of continuous items using linear regression with one or more continuous latent variables as predictors
    • The interpretations of the regression parameters are identical between linear regression and CFA

Regression and CFA Differences

The differences between CFA and regression are:

  • \(\theta_p\) as a predictor is not observed in CFA but is observed in regression
    • Therefore, we must set its mean and variance
      • There are multiple was to do this (standardized factor, marker item, etc…)—stay tuned
  • Each of the model parameters has a different name (and symbol denoting it) in CFA
    • \(\beta_{Y_i, 0} = \mu_i\) is the item intercept
    • \(\beta_{Y_i,1} = \lambda_i\) is the factor loading for an item
    • \(\sigma^2_{e_{Y_i}} = \psi^2_i\) is the unique variance for an item
  • Need a sufficient number of observed variables to empirically identify the latent trait
    • Three items for identification (and four for testable unidimensionality)

Changing Notation

Our five-item CFA model with CFA-notation:

\[ \begin{array}{c} Y_{p1} = \mu_1 + \lambda_1 \theta_p + e_{p, Y_1} \\ Y_{p2} = \mu_2 + \lambda_2 \theta_p + e_{p, Y_2} \\ Y_{p3} = \mu_3 + \lambda_3 \theta_p + e_{p, Y_3} \\ Y_{p4} = \mu_4 + \lambda_4 \theta_p + e_{p, Y_4} \\ Y_{p5} = \mu_5 + \lambda_5 \theta_p + e_{p, Y_5} \\ \end{array} \]

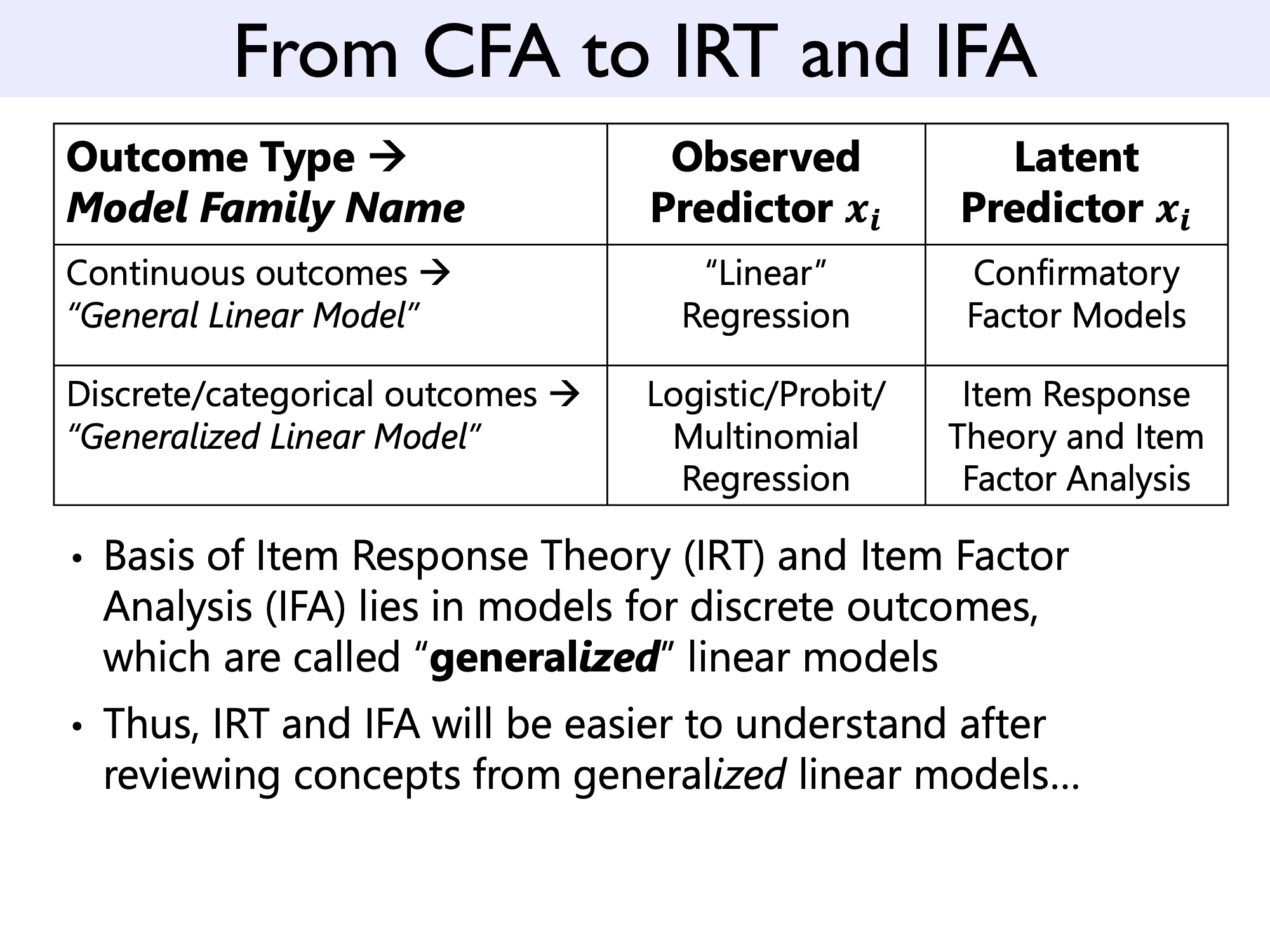

Measurement Models for Different Item Types

  • The CFA model assumes (1) continuous latent variables and (2) continuous item scores

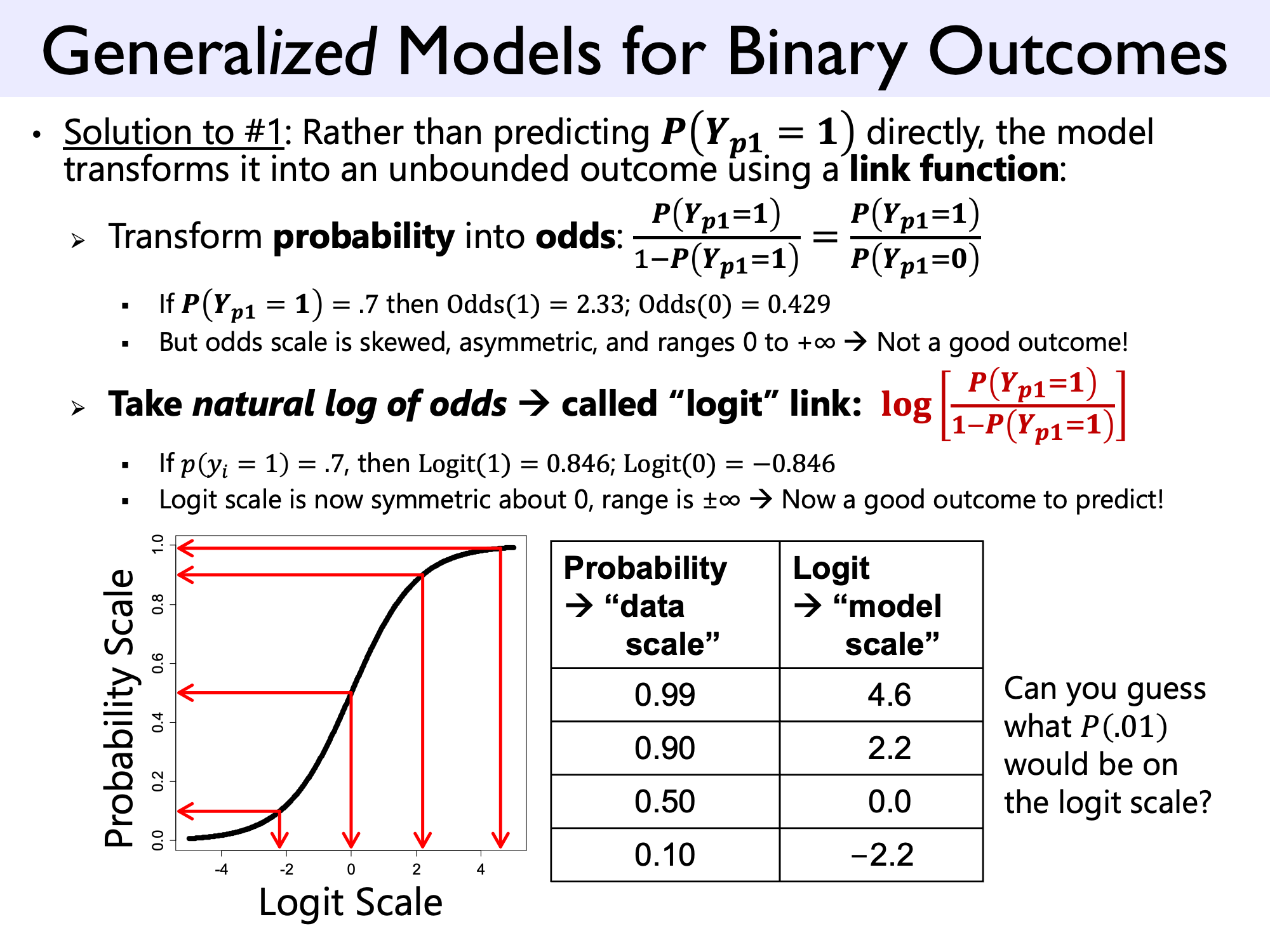

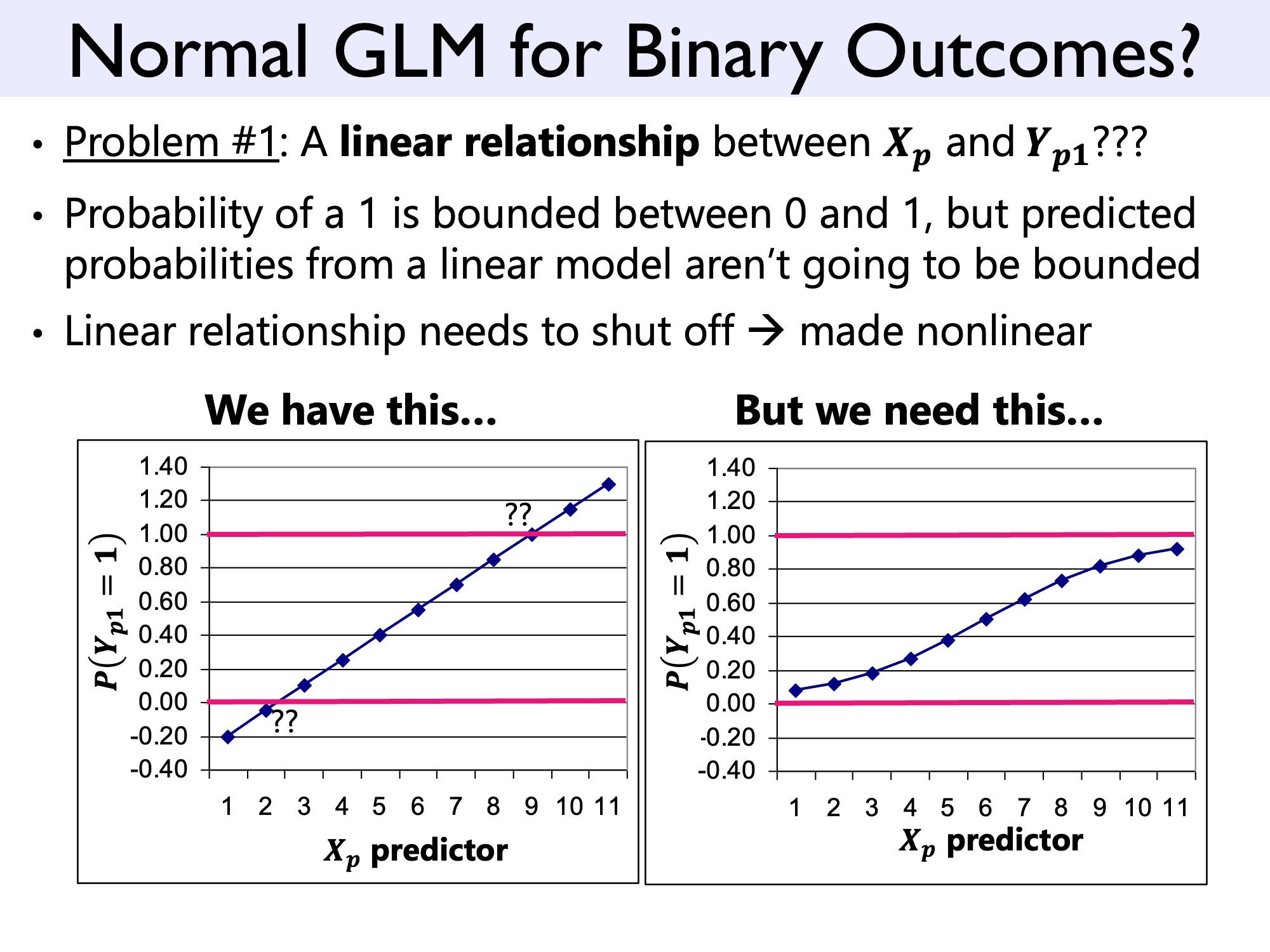

    • What should we do if we have binary items (e.g., yes/no, correct/incorrect)?
  • If we had observed \(\theta_p\) and wanted to predict \(Y_{1p} \in \{0,1\}\) what type of analysis would we use?

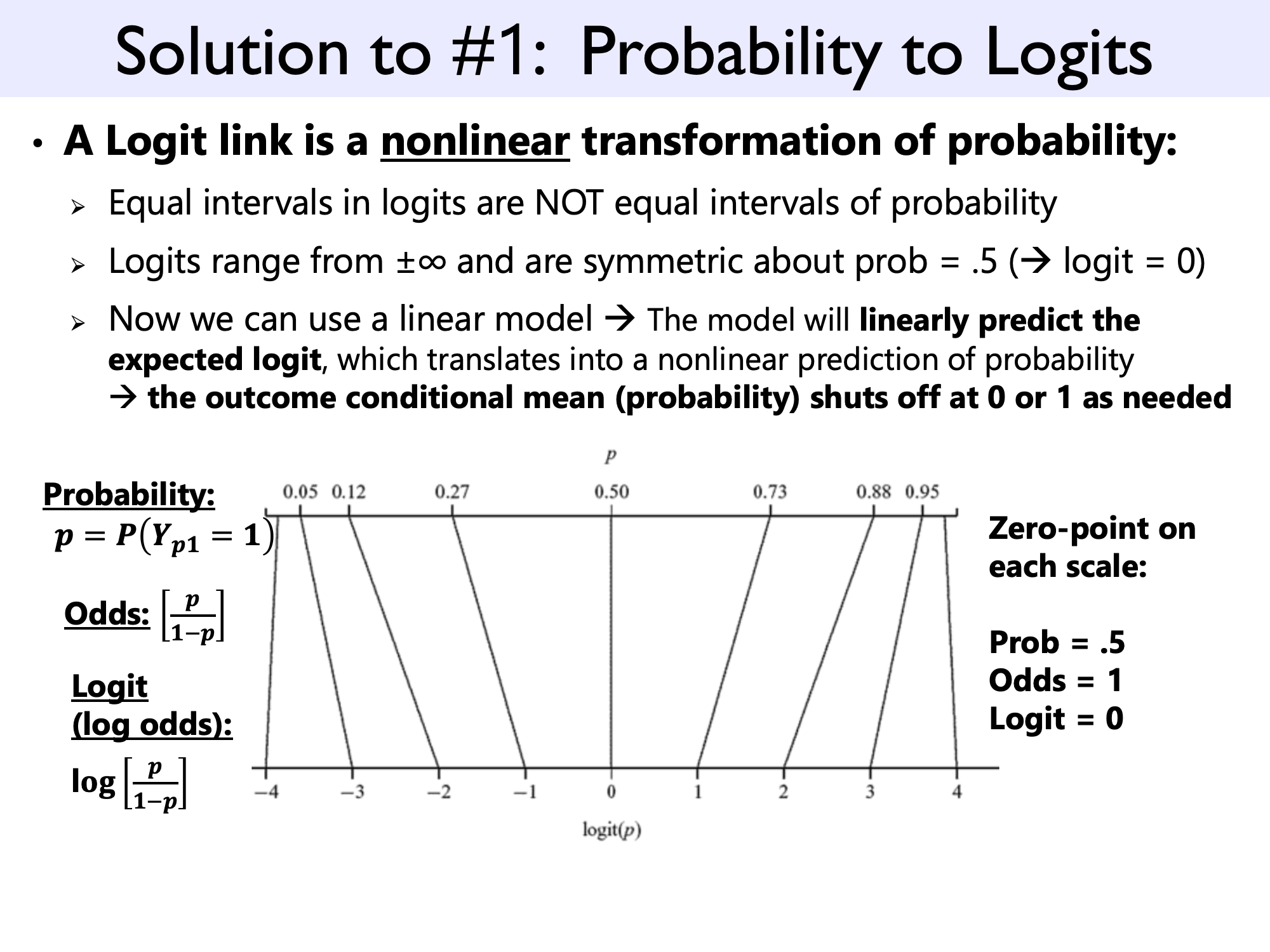

  • Logistic regression: \[P\left(Y_{p1} = 1\right) = \frac{\exp \left( \beta_{Y_1,0} + \beta_{Y_1,1} \theta_p\right)}{1+\exp \left( \beta_{Y_1,0} + \beta_{Y_1,1} \theta_p\right)}\]

Interpreting Model Parameters

\[Logit \left( P\left(Y_{p1} = 1\right) \right) = \beta_{Y_1,0} + \beta_{Y_1,1} \theta_p\]

Here:

  • \(\beta_{Y_1,0}\) is the intercept — the expected log odds of a correct response when \(\theta_p = 0\)
  • \(\beta_{Y_1,1}\) is the slope — the expected change in log odds of a correct response for a one-unit change in \(\theta_p\)
  • Note: there is no error variance term

Bernoulli Distributions

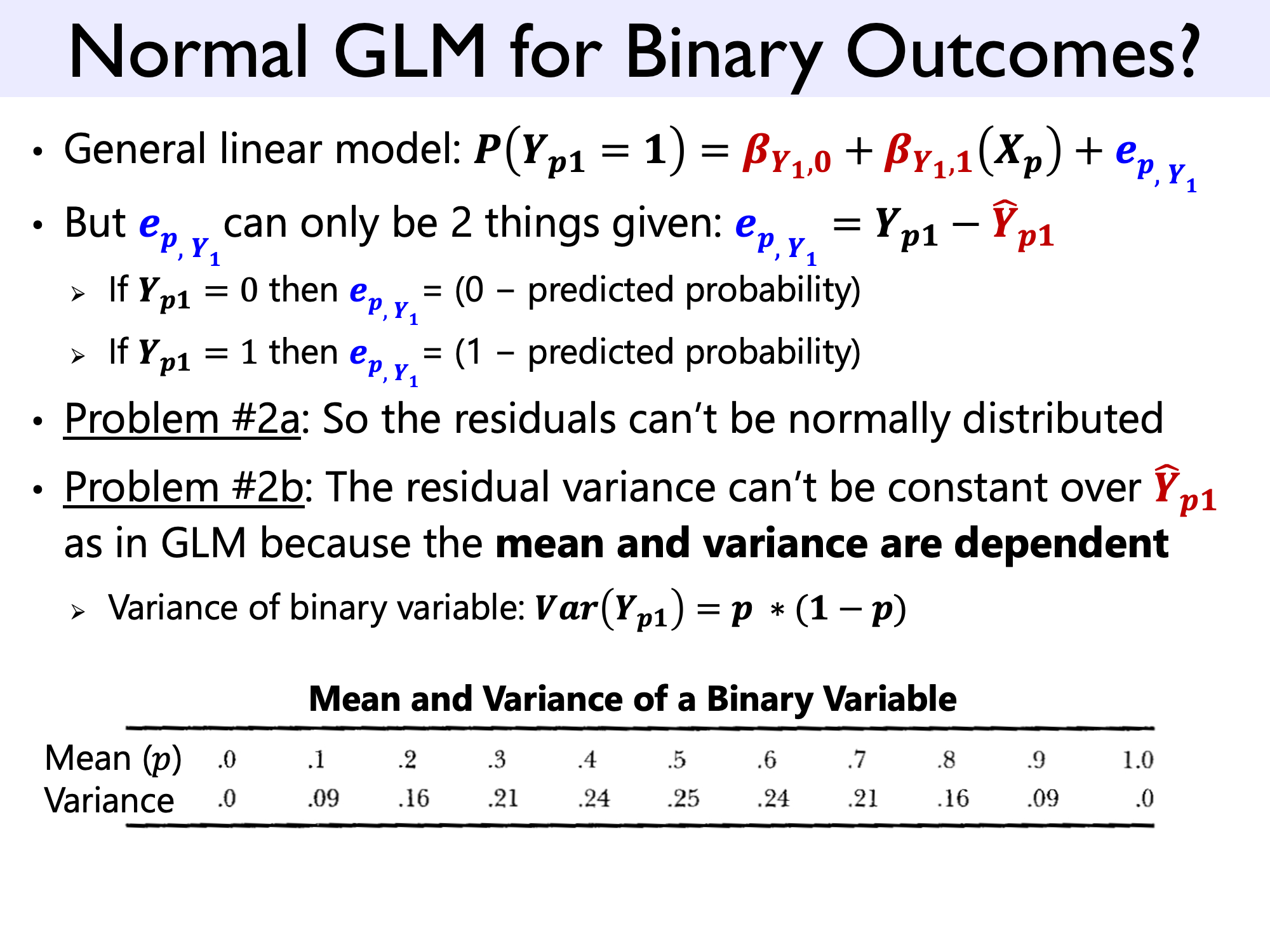

  • Using logistic regression for binary outcomes makes the assumption that the outcome follows a (conditional) Bernoulli distribution, or \(Y \sim B(p_Y)\)
    • The parameter \(p_Y\) is the probability that Y equals one, or \(P\left(Y = 1\right)\)
  • The Bernoulli pdf (sometimes called the probability mass function as the variable is discrete) is: \[f(Y) = \left(p_Y\right)^Y \left(1-p_Y \right)^{1-Y}\]
  • So, there is no error variance parameter in logistic regression as there is no parameter in the distribution that represents error (it is a non-constant function of the mean)
    • Error is represented by how far off a probability is from either zero or one

Logistic Regression with Latent Variable(s)

  • Back to our running example, if we had binary items and wished to form a (unidimensional) latent variable model, we would have something that looked like:

\[P\left(Y_{pi} = 1 \mid \theta_p \right) = \frac{\exp \left( \mu_i + \lambda_i \theta_p\right)}{1+\exp \left( \mu_i + \lambda_i \theta_p\right)}\]

Logistic Regression with Latent Variable(s)

\[P\left(Y_{pi} = 1 \mid \theta_p \right) = \frac{\exp \left( \mu_i + \lambda_i \theta_p\right)}{1+\exp \left( \mu_i + \lambda_i \theta_p\right)}\]

  • Here, the parameters retain their names from CFA:
    • \(\beta_{Y_i, 0} = \mu_i\) is the item intercept
    • \(\beta_{Y_i,1} = \lambda_i\) is the factor loading for an item
  • We call this slope-intercept parameterization
  • This parameterization is called item factor analysis(IFA)
    • Sometimes the intercept \(\mu_i\) is replaced with a threshold \(\tau\) (where \(\tau = -\mu_i\))

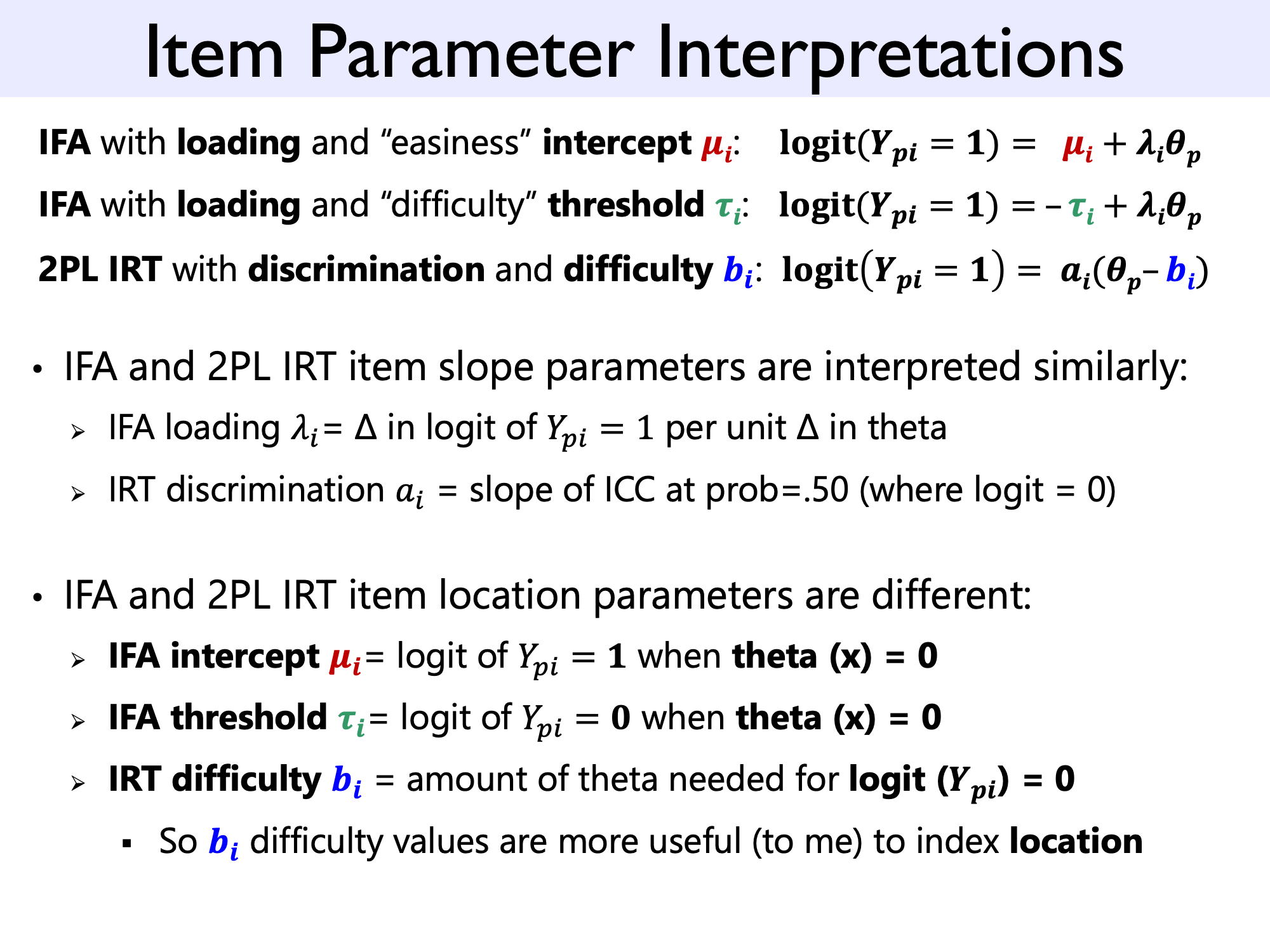

From IFA to IRT

  • IFA and IRT are equivalent models—their parameters are transformations of each other: \[ \begin{array}{c} a_i = \lambda_i \\ b_i = -\frac{\mu_i}{\lambda_i} \end{array} \]

From IFA to IRT

  • This yields the discrimination difficulty parameterization that is common in unidimensional IRT models:

\[P\left(Y_{pi} = 1 \mid \theta_p \right) = \frac{\exp \left( a_i\left( \theta_p -b_i\right)\right)}{1+\exp \left(a_i\left( \theta_p -b_i\right)\right)}\]

  • Here:,
    • \(b_i\) is the item difficulty—the point on the \(\theta\) scale at which a person has a 50% chance of answering with a one
    • \(a_i\) is the item discrimination—the slope of a line tangent to the curve at the item difficulty
  • IRT models have a number of different forms of this equation (this is the two-parameter logistic 2PL model)

IRT Example: Acheivement Data

To demonstrate a couple IRT models, we will compare a 1PL and 2PL model for the example data

  • Please see the script mlmmWorkshop2025_Lecture02_Introduction_To_Measurement_Models.R for details

Generalized Linear (Psychometric) Models: Summary

  • A key to understanding the varying types of psychometric models is that they must map the theory (the right-hand side of the equation—\(\theta_p\)) to the type of observed data (left-hand side of the equation)
  • So far we’ve seen two types of data: continuous (with a normal distribution) and binary (with a Bernoulli distribution)
  • For each, the right-hand side of the item model was the same
  • For the normal distribution:
    • We had an error term but did not transform the right-hand side
  • For the Bernoulli distribution:
    • No error term and a function used to transform the right-hand side so that the conditional mean will range between zero and one
